Шаблон FBD_AiVoter2oo2
Шаблон FBD FBD_AiVoter2oo2 используется в проекте APUCS (библиотека Unimod 2) для реализации логики соответствующего типового блока или оборудования.
Обвязка блоков
Section titled “Обвязка блоков”Ниже приведена схема обвязки блоков данного шаблона.

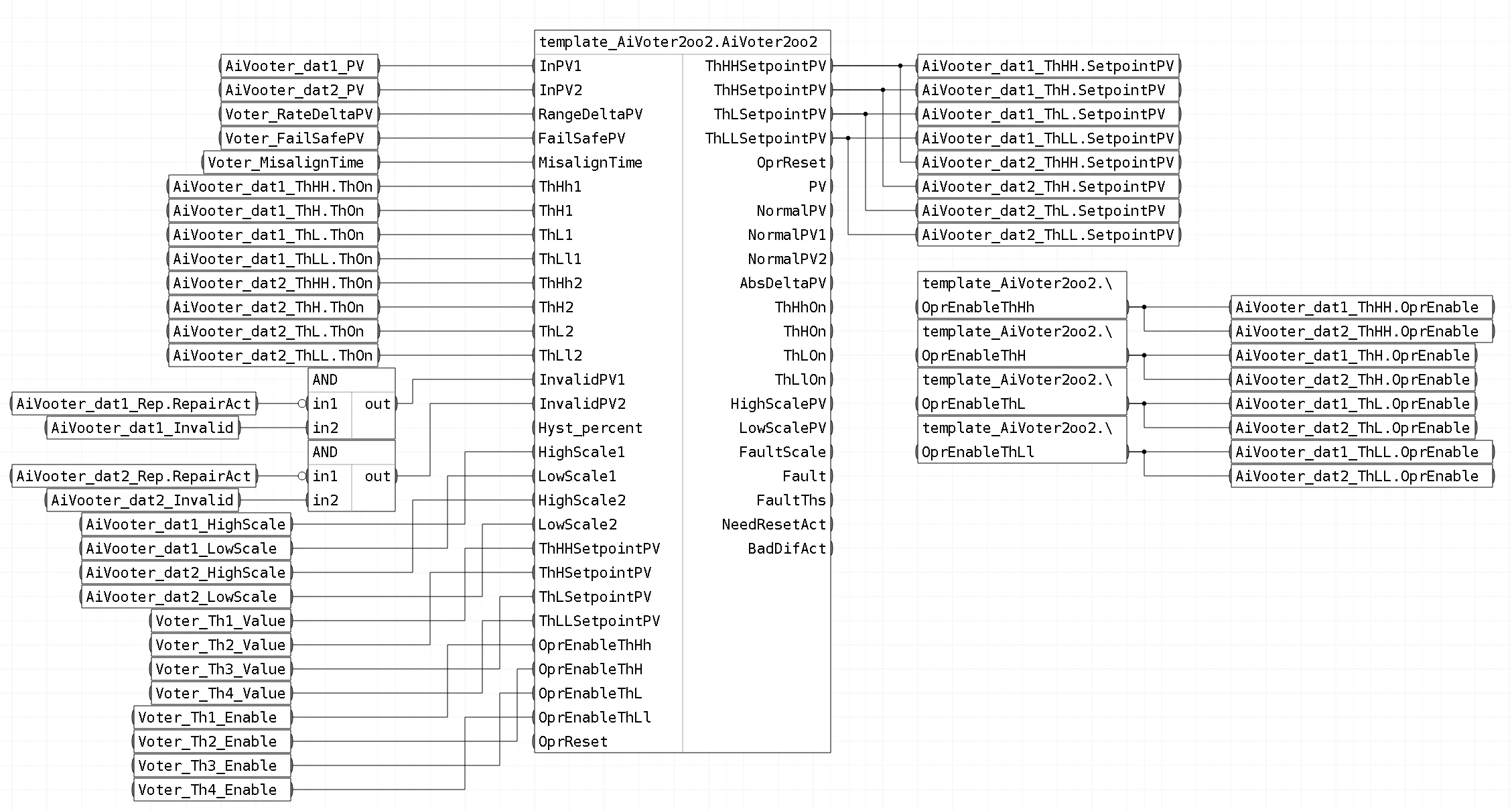

Рис. 1. Схема обвязки блоков шаблона.
Применение
Section titled “Применение”Данный FBD-шаблон используется в следующих типовых блоках и листах-шаблонах:
| OBJTYPE | Лист шаблона | Файл вывода |
|---|---|---|
| AiVoter2oo2 | esd | FBD_AiVoter2oo2 |
| AiVoter2oo2 | main | FBD_AiVoter2oo2 |
Данный шаблон входит в сводную таблицу FBD-шаблонов.
Правила замены и подстановки
Section titled “Правила замены и подстановки”| Заменить что | Заменить на |
|---|---|
| template_AiVoter2oo2 | [TAG] |
| AiVooter_dat1_ | [TAG1]. |
| AiVooter_dat2_ | [TAG2]. |
| AiVooter_dat1_Rep | [TAG1]_Rep |
| AiVooter_dat2_Rep | [TAG2]_Rep |
| AiVooter_dat1_ThHH | GAP.AUCS.Thresholds.GetThTag([TAG1],1) |
| AiVooter_dat1_ThH | GAP.AUCS.Thresholds.GetThTag([TAG1],2) |
| AiVooter_dat1_ThL | GAP.AUCS.Thresholds.GetThTag([TAG1],3) |
| AiVooter_dat1_ThLL | GAP.AUCS.Thresholds.GetThTag([TAG1],4) |
| AiVooter_dat2_ThHH | GAP.AUCS.Thresholds.GetThTag([TAG2],1) |
| AiVooter_dat2_ThH | GAP.AUCS.Thresholds.GetThTag([TAG2],2) |
| AiVooter_dat2_ThL | GAP.AUCS.Thresholds.GetThTag([TAG2],3) |
| AiVooter_dat2_ThLL | GAP.AUCS.Thresholds.GetThTag([TAG2],4) |
| Voter_Th1_Value | [Voter_Th1_Value] |
| Voter_Th2_Value | [Voter_Th2_Value] |
| Voter_Th3_Value | [Voter_Th3_Value] |
| Voter_Th4_Value | [Voter_Th4_Value] |
| Voter_Th1_Enable | [Voter_Th1_Enable] |
| Voter_Th2_Enable | [Voter_Th2_Enable] |
| Voter_Th3_Enable | [Voter_Th3_Enable] |
| Voter_Th4_Enable | [Voter_Th4_Enable] |
| Voter_RateDeltaPV | [Voter_RateDeltaPV] |
| Voter_FailSafePV | [Voter_FailSafePV] |
| Voter_MisalignTime | [Voter_MisalignTime] |
| AiVooter_dat1_ThHH.SetpointPV | [Sensor1_Th1_Tag].SetpointPV |
| AiVooter_dat1_ThH.SetpointPV | [Sensor1_Th2_Tag].SetpointPV |
| AiVooter_dat1_ThL.SetpointPV | [Sensor1_Th3_Tag].SetpointPV |
| AiVooter_dat1_ThLL.SetpointPV | [Sensor1_Th4_Tag].SetpointPV |
| AiVooter_dat2_ThHH.SetpointPV | [Sensor2_Th1_Tag].SetpointPV |
| AiVooter_dat2_ThH.SetpointPV | [Sensor2_Th2_Tag].SetpointPV |
| AiVooter_dat2_ThL.SetpointPV | [Sensor2_Th3_Tag].SetpointPV |
| AiVooter_dat2_ThLL.SetpointPV | [Sensor2_Th4_Tag].SetpointPV |
| AiVooter_dat1_ThHH.OprEnable | [Sensor1_Th1_Tag].OprEnable |
| AiVooter_dat1_ThH.OprEnable | [Sensor1_Th2_Tag].OprEnable |
| AiVooter_dat1_ThL.OprEnable | [Sensor1_Th3_Tag].OprEnable |
| AiVooter_dat1_ThLL.OprEnable | [Sensor1_Th4_Tag].OprEnable |
| AiVooter_dat2_ThHH.OprEnable | [Sensor2_Th1_Tag].OprEnable |
| AiVooter_dat2_ThH.OprEnable | [Sensor2_Th2_Tag].OprEnable |
| AiVooter_dat2_ThL.OprEnable | [Sensor2_Th3_Tag].OprEnable |
| AiVooter_dat2_ThLL.OprEnable | [Sensor2_Th4_Tag].OprEnable |
| template_AiVoter2oo2.OprEnableThHh | [VoterTag].OprEnableThHh |
| template_AiVoter2oo2.OprEnableThH | [VoterTag].OprEnableThH |
| template_AiVoter2oo2.OprEnableThL | [VoterTag].OprEnableThL |
| template_AiVoter2oo2.OprEnableThLl | [VoterTag].OprEnableThLl |
MatchingStrategy: StartsWith
